Heidelberg FH.A0014A7/01 Coupling Module

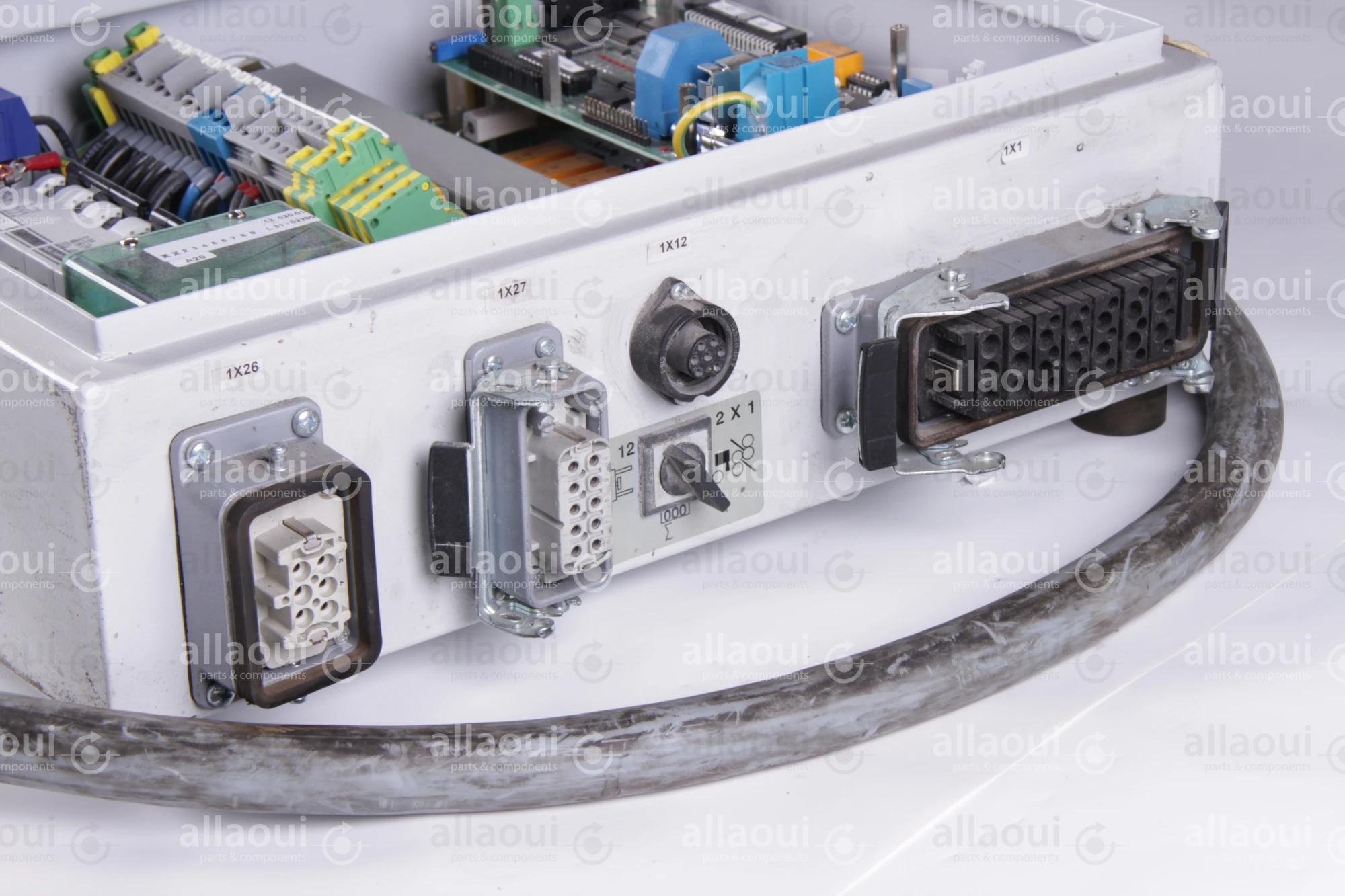

The coupling module, also known as a connection module, interface module, or control module, is a component from Heidelberg with the type number FH.A0014A7/01, used in bindery and post-press machines. It serves for electrical coupling and signal transmission between various functional units of machines. It has the dimensions 50 x 70 x 30 cm and weighs 15 kg. Coupling modules typically find application in printing houses for controlling bindery and post-press systems, as well as in automation technology for integrating complex machine systems.

Betriebsspannung / Operating Voltage: 3x400
Steuerspannung / Control Voltage: 24
Frequenz / Frequency: 50/60
Nennbetriebsstrom / Amperage:
Typ / Type: Koppelmodul 1
Stromlaufplan / Wiring Diagram: FH.A0014A7/01
027 004

Typ / Type: Kopp.1
Baujahr / Year: 02.07
Nr. / No.: 0362.01
