PBT-RB010SG1WSNVMC0Z
Sick PBT-RB010SG1WSNVMC0Z Pressure Sensor 0 bar ... 10 bar
€264.25
€222.06 net Payment in EUR
Only 2 left
Shipping to
Loading shipping rates…
Product information "Sick PBT-RB010SG1WSNVMC0Z Pressure Sensor 0 bar ... 10 bar"

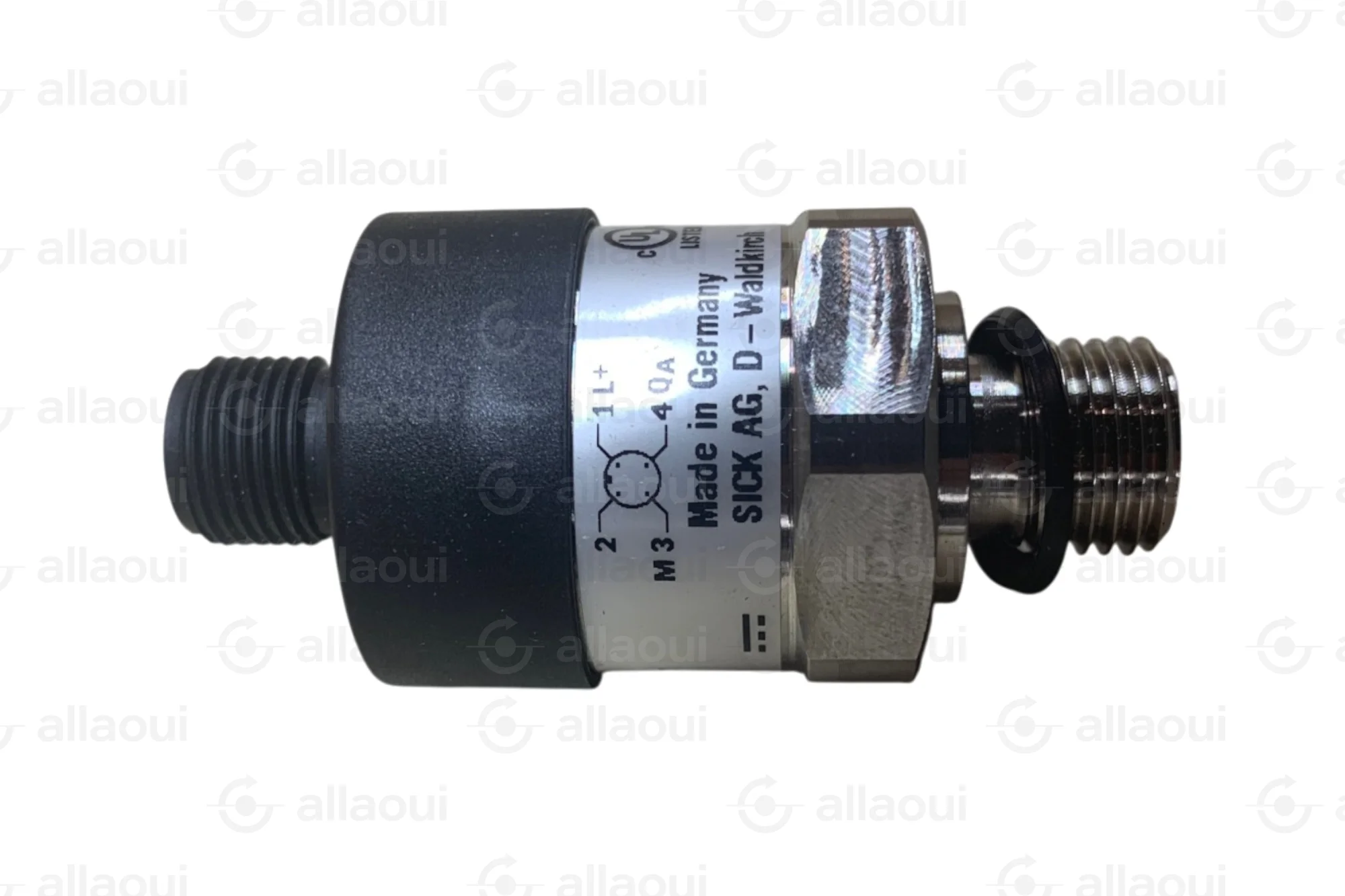

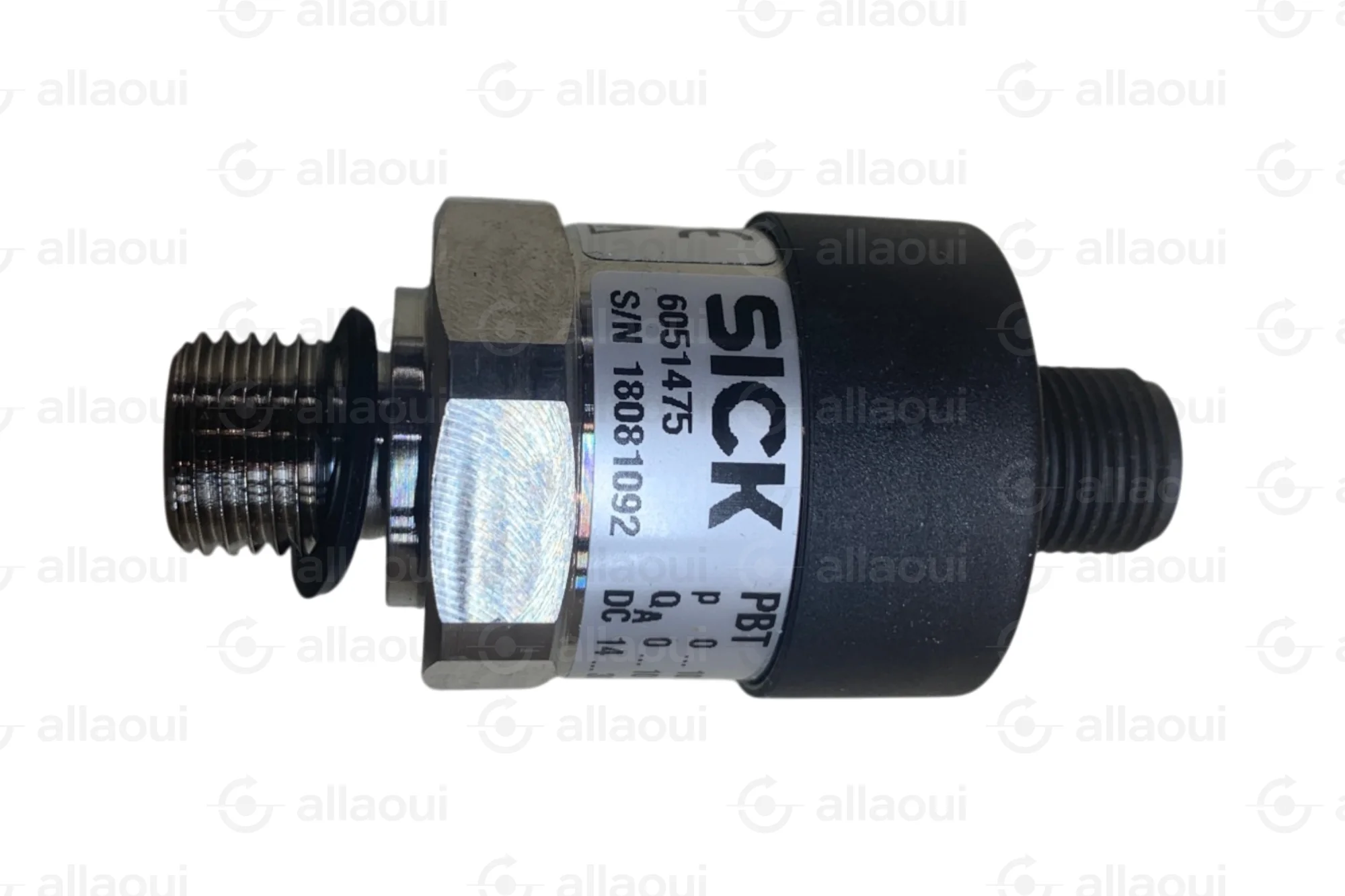

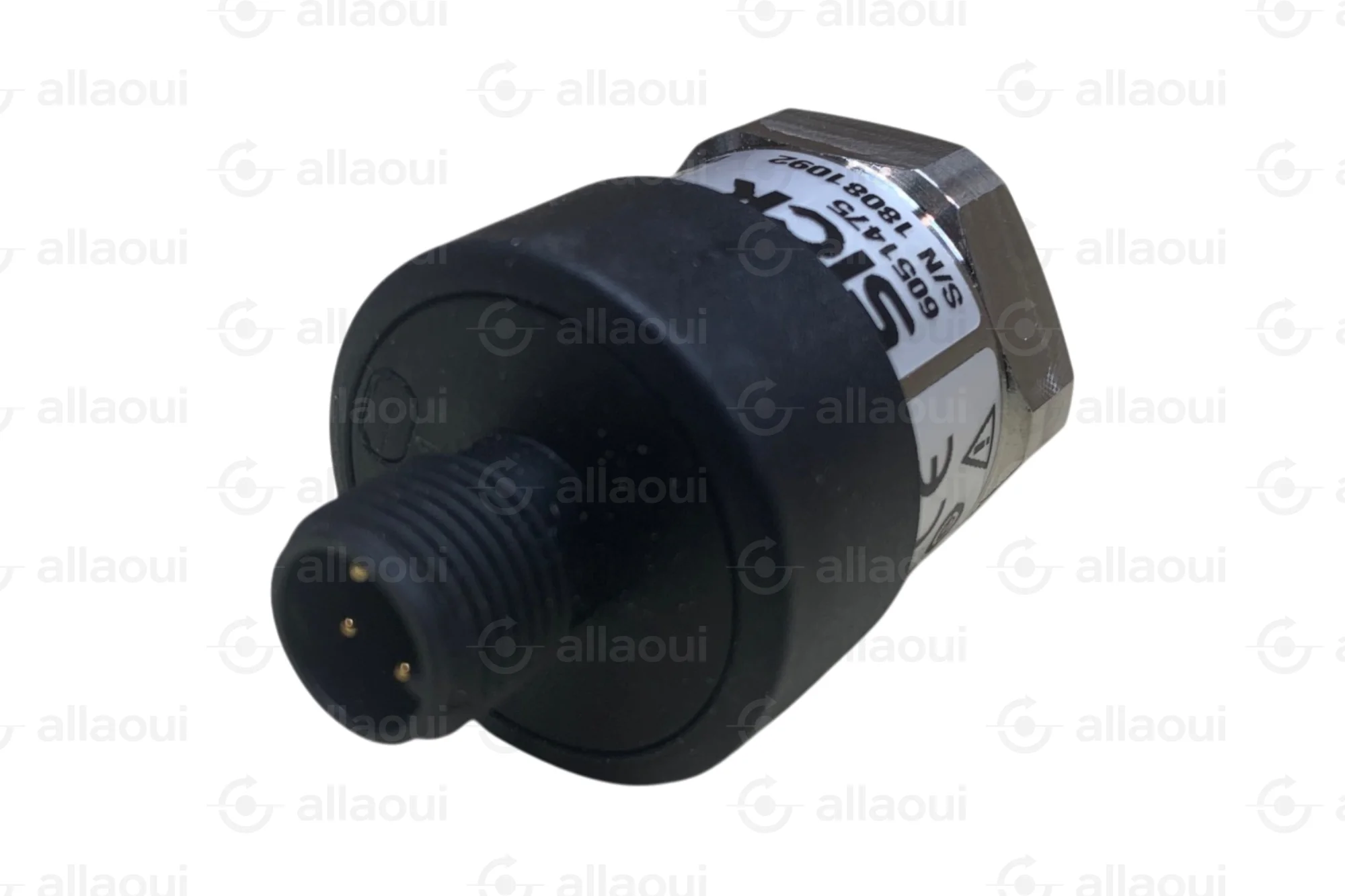

Sick Pressure Sensor 0 bar ... 10 bar
Sick PBT-RB010SG1WSNVMC0Z
Condition: New
Product is new and has never been used before
The pressure sensor, also known as pressure transducer, pressure transmitter, or pressure converter, with type number PBT-RB010SG1WSNVMC0Z from Sick is an electrical sensor for relative pressure measurement. It features a measuring range from 0 bar to 10 bar. The process connection is G 1/4 A according to DIN 3852-E with a channel bore of 6 mm. The process temperature range is between 0 °C and +80 °C. It has an NBR seal and provides an output signal of 0 V to 10 V via a 3-wire connection. It has dimensions 3 x 3 x 6 cm and weighs 0.07 kg. Pressure sensors are used for monitoring and controlling pressure conditions in industrial systems. Typical applications are found in hydraulic systems, pneumatic controls, as well as in process automation and mechanical engineering, to precisely detect process pressures.
Pressure sensor for relative pressure measurement with a measuring range of 0 bar to 10 bar. Features G 1/4 A process connection according to DIN 3852-E and a channel bore of 6 mm. The process temperature range is 0 °C to +80 °C. It has an NBR seal and outputs a 0 V to 10 V signal on a 3-wire connection.
| MPN | PBT-RB010SG1WSNVMC0Z |
| MPN (Clear) | PBTRB010SG1WSNVMC0Z |
| Weight | 0.07 kg |
| Dimensions | 3 x 3 x 6 cm |
| Package weight | 0.07 kg |
| Package dimensions | 3 x 3 x 6 cm |
Product may be delivered as bulk (without original packaging). Contact us if original packaging is required so we can check availability.
| Condition: | NEW |
|---|
