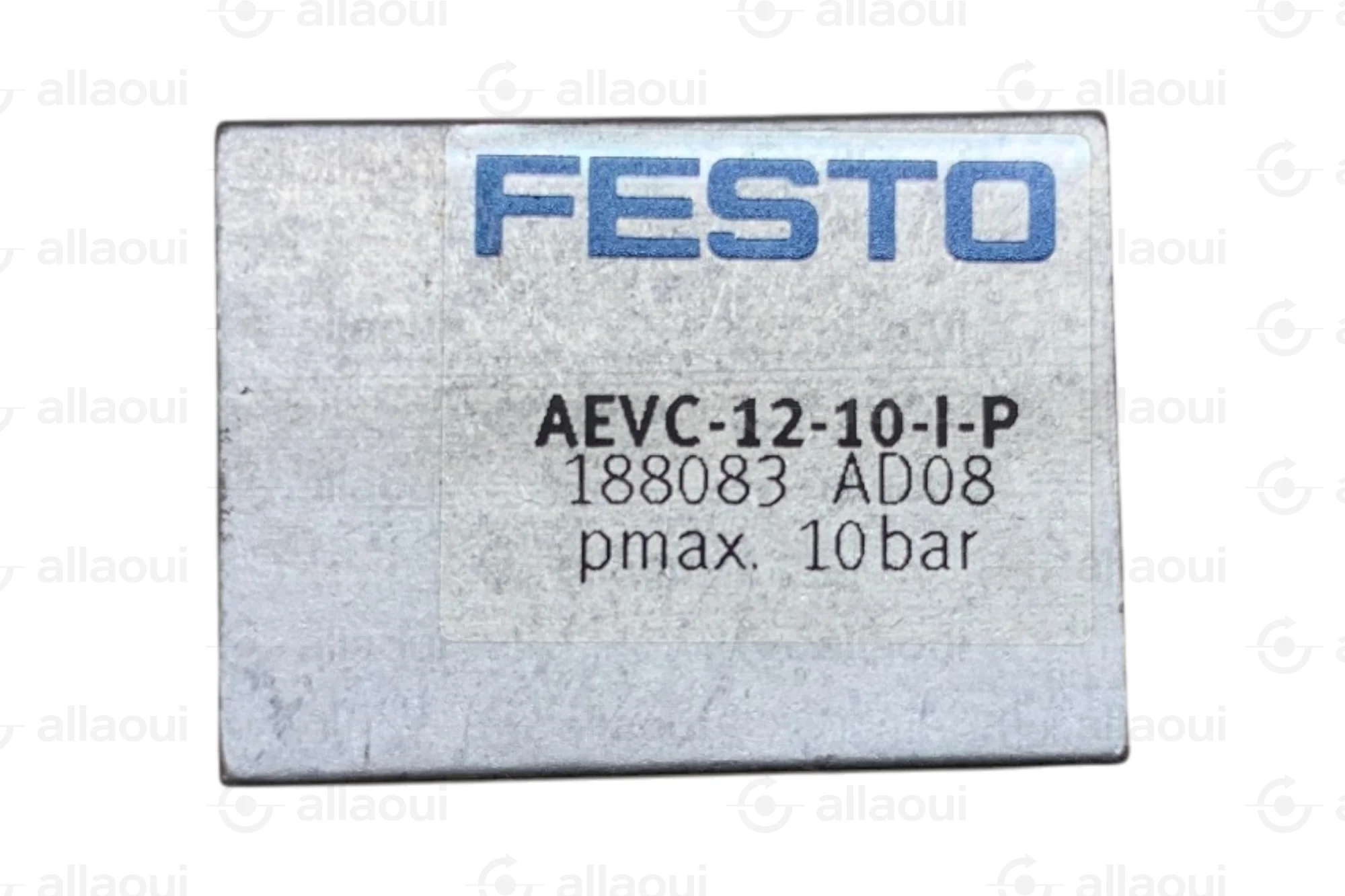

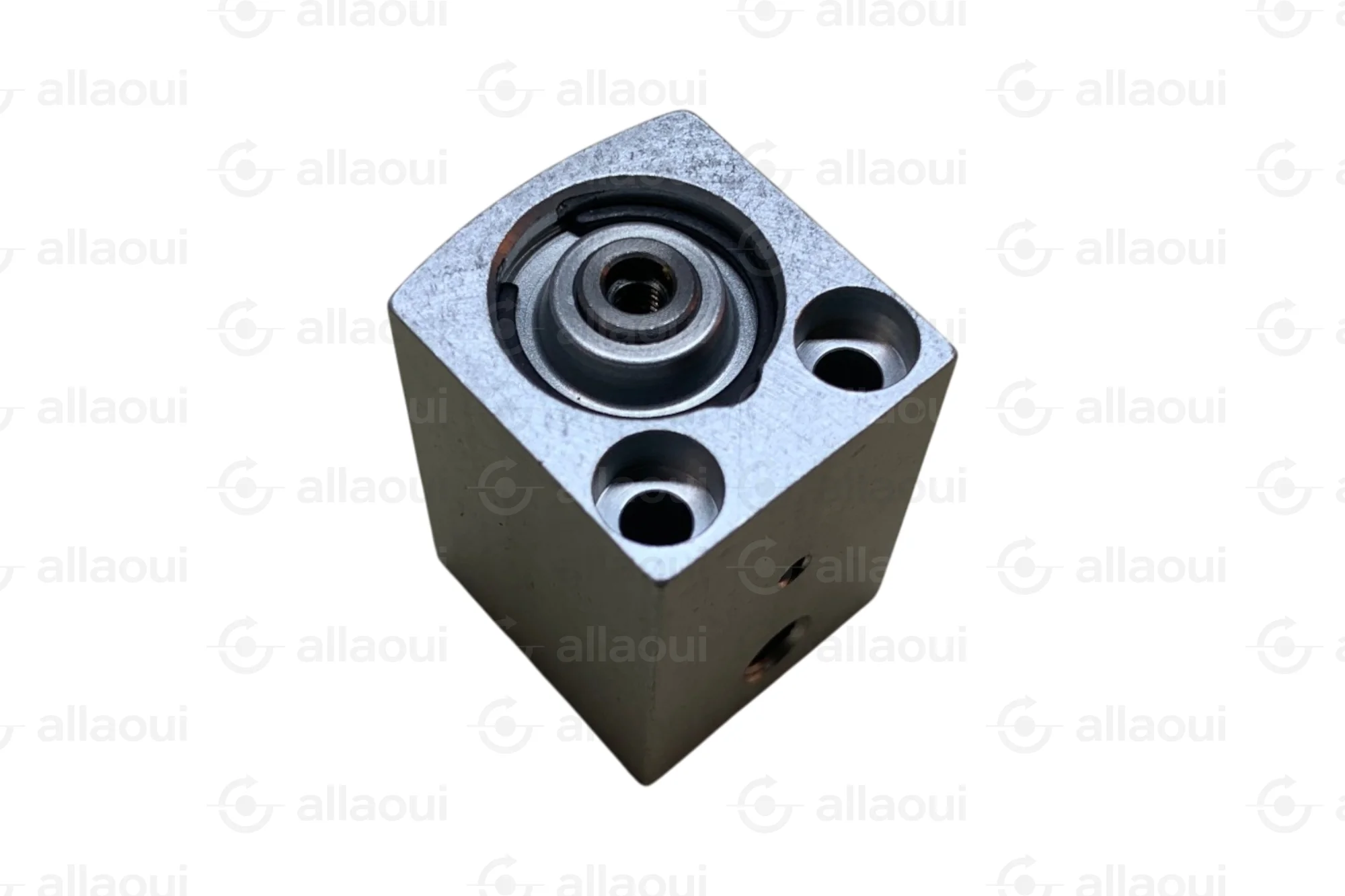

Festo AEVC-12-10-I-P Compact Cylinder Single Acting 12mm Bore 10mm Stroke

The compact single-acting cylinder, also known as a short-stroke cylinder, miniature cylinder, or pneumatic single-acting cylinder, with the type number AEVC-12-10-I-P from Festo, is a compact pneumatic cylinder for generating linear movements. It is designed as single-acting, meaning that the working piston is moved in only one direction by compressed air, and reset by a spring or an external force. The device has dimensions 2 x 2.2 x 2.85 cm and weighs 0.032 kg. It features an internal thread at the piston rod end. The operating pressure range is between 1.5 and 10 bar, and the temperature range is from -20°C to 80°C. The connection method is M5. Pneumatic cylinders of this type are used to realize mechanical movements in industrial processes using compressed air, especially where limited installation space is available. Typical applications are found in automation technology, for example in clamping devices, assembly systems, and handling systems.

Compact cylinder, single acting, with internal thread at the piston rod end. Operating pressure range of 1.5 to 10 bar. Temperature range of -20°C to 80°C. Connection method M5.
