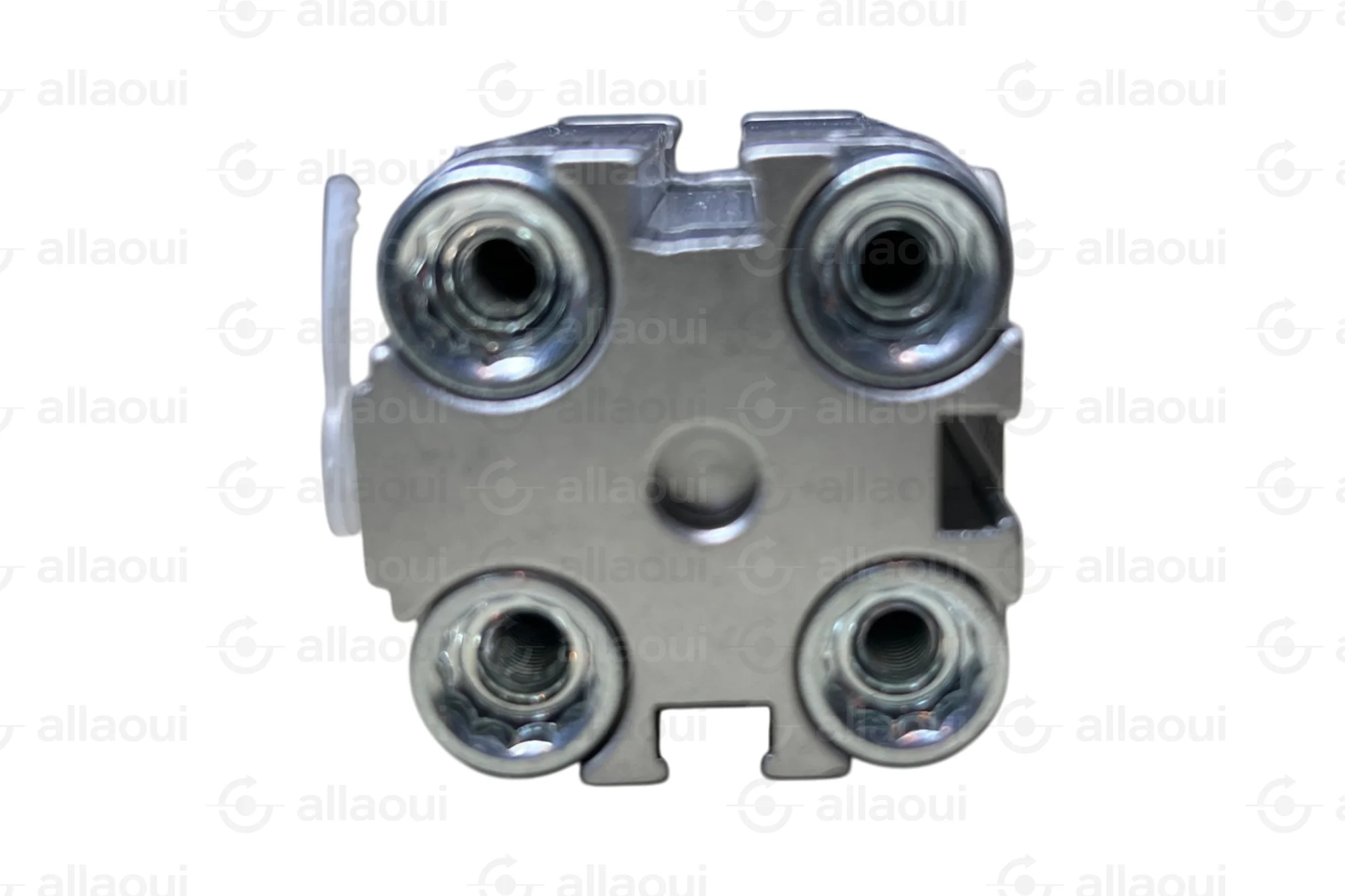

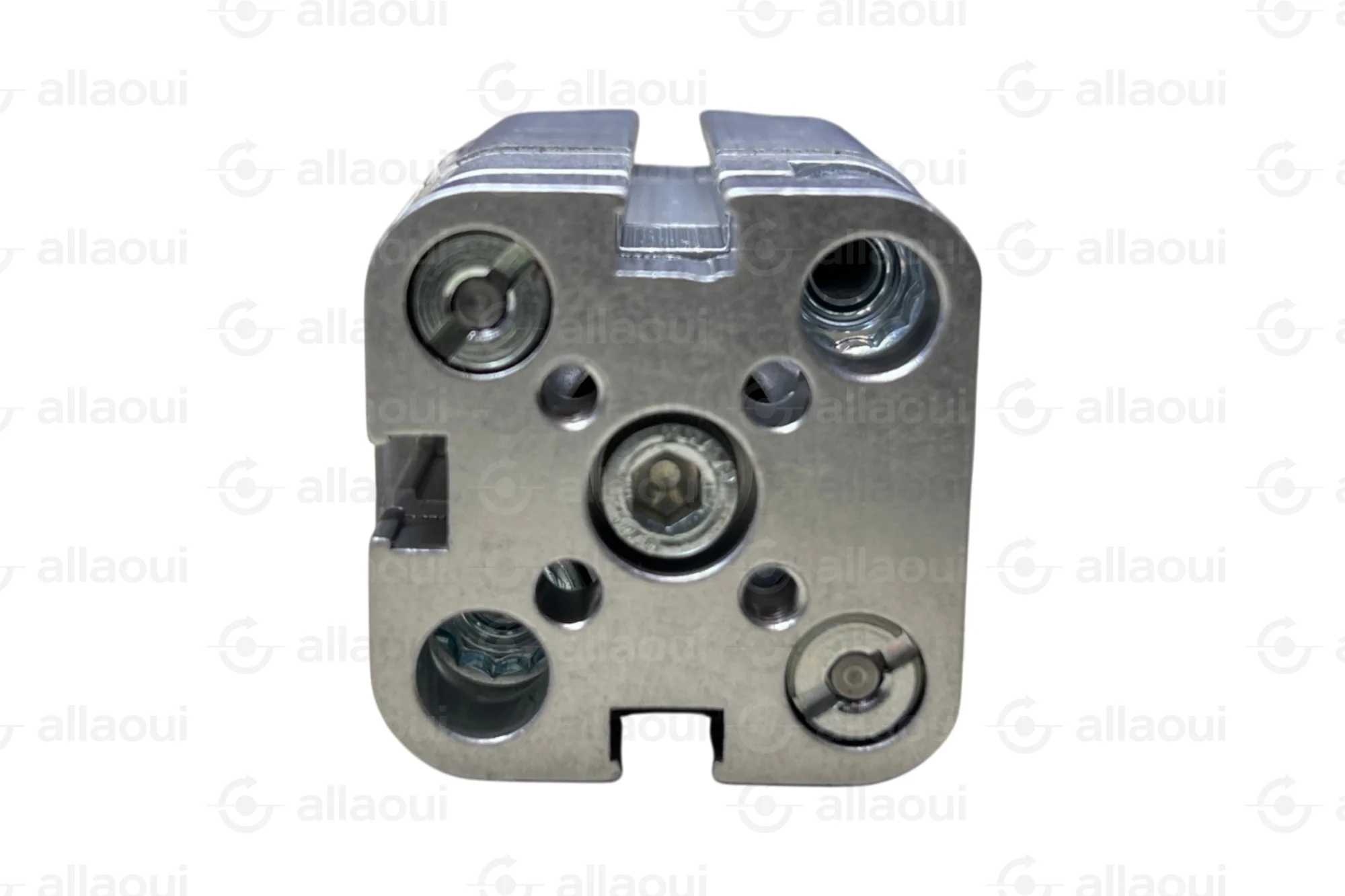

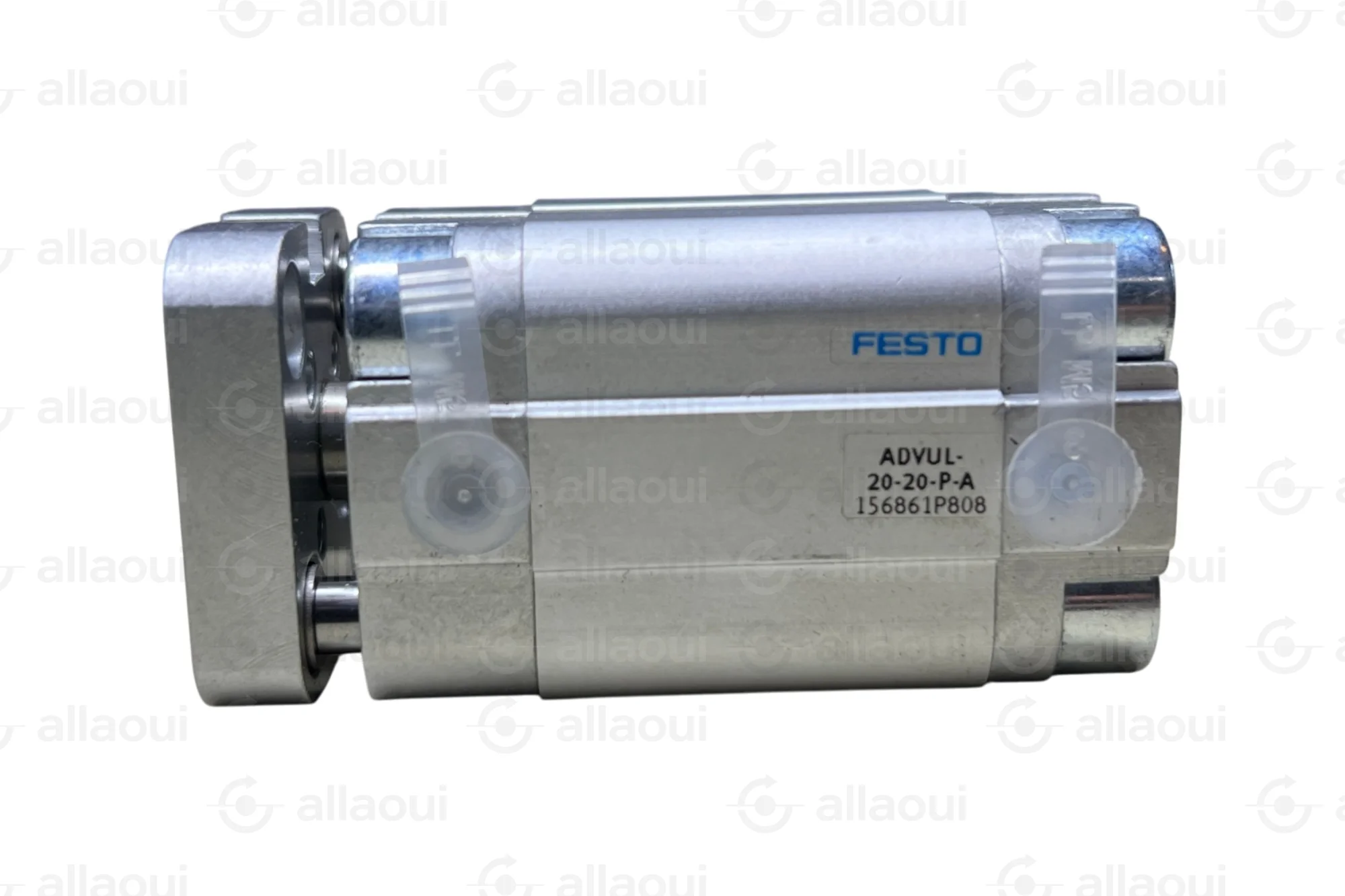

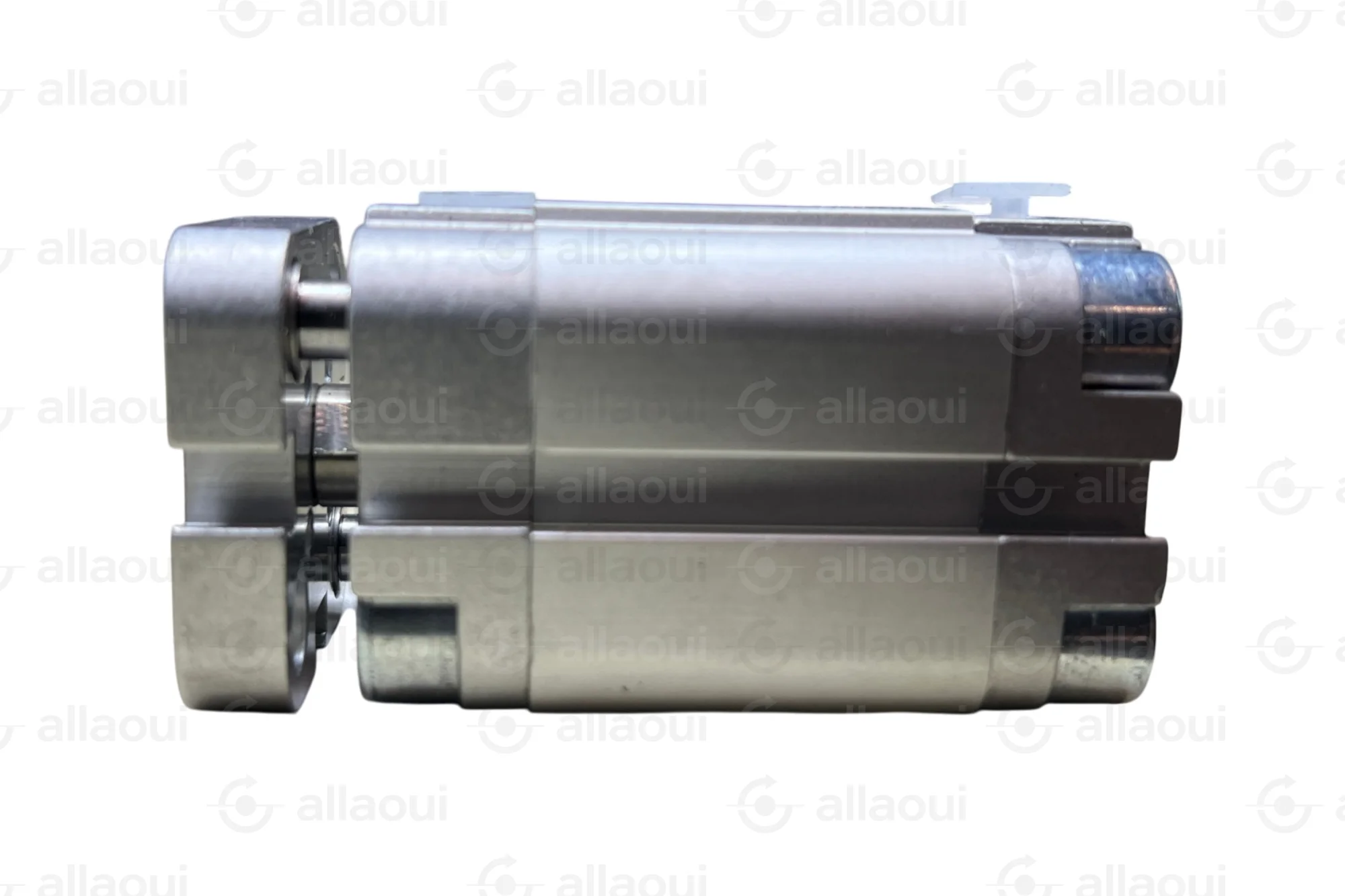

Festo 156861 Compact Cylinder ADVUL-20-20-P-A 20mm Bore 20mm Stroke

The pneumatic compact cylinder, also known as short-stroke cylinder, mini cylinder, or compact design cylinder, from Festo with type number 156861 is a double-acting element for pneumatic applications. It features a bore of 20 mm and a stroke of 20 mm. The device has elastic damping rings/plates at both ends and is suitable for detection by proximity switches. The operating pressure range is 1 to 10 bar. It has the dimensions 4.5 x 4.5 x 7.5 cm and weighs 0.23 kg. Pneumatic compact cylinders enable precise motion and force generation in confined spaces, making them ideal for applications requiring high performance with minimal space. Typical fields of application are found in automation technology, for example in clamping devices in assembly technology or for positioning tasks in handling technology.

Festo compact cylinder with a 20mm bore and 20mm stroke. Features elastic damping rings/plates on both ends, double-acting functionality, and is suitable for proximity switch detection. Designed for pneumatic applications with a working pressure of 1 to 10 bar.
